Emergency Stop Lockout BD-D53
a.Made from high strength transparent glass resin PC.
b.Avoid unpick, install easily, install the base on the bottom of the emergency stop switch, can lock and remove at random.
c.Install on the push or spiral release emergency stop button, avoid accidentally touch.
d.When no need lock at ordinary time, leave the base at site, not affect the operation at all. Put the cover to lock the base if necessary.
Part Code | Description |
BD-D53 | Four pieces in one set |
BD-D53-1 | Cover, height: 49.3mm; outer diameter: 60mm |
BD-D53-2 | Inner diameter: 22/30mm base |
BD-D53-3 | Inner diameter: 22mm stainless steel base |
BD-D53-4 | Inner diameter: 34mm semicircle base, base can custom made with 3M glue |
Advantage
1. Designed exclusively for LOTO.
2. Patent design. No need to dismantle the switch. Mostly used for temporary lockout. it can also be used for permanent lockout.
3. Fast and convenient install and remove without any help of glue or screw driver
4. Adjustable lockout diameter with wide range of application
5. High transparent ABS cover allow visibility of nameplate and labels
6. Unique 304 stainless steel teeth chassis and fiber glass plastic base provides firm gripping and locking. In this way does enhance its anti-climate characteristics and life span

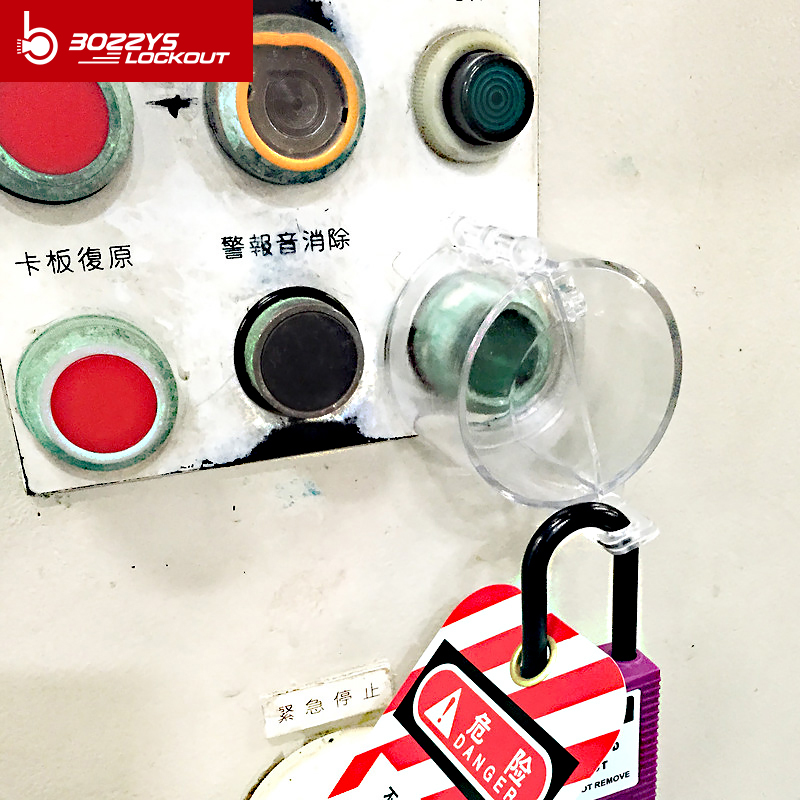

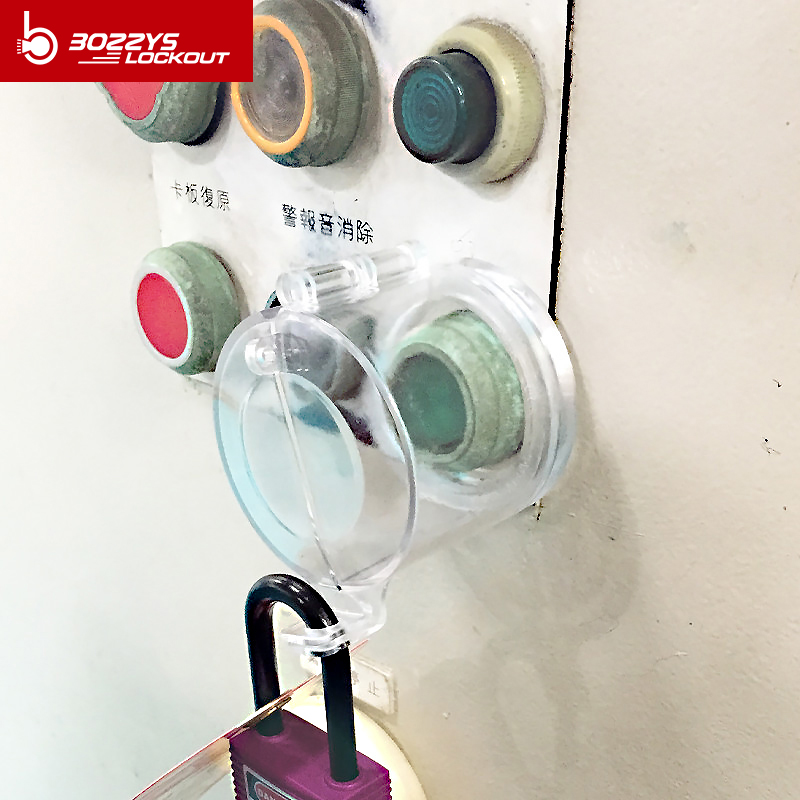

How to use it?
clockwise rotate the plastic base to easily fasten the button, put on the cover and then apply a padlock for security
